Calculate Deflection For Simple-Span I-shaped Members And
Channels: |
|
|
|
Calculation: |
|
|
Designer/Checker: |
|
|
|
|
|
Input: |
|
|
|
|
|
|
|
|
|
(Note: All input Metric units are converted to English units
for the equations below and then the output English units are converted back to
Metric) |
|
|
|
AISC Chapter 3 - Serviceability: |
|
The following calculation applies to simple-span beams consisting of I-shaped
members and channels. |
|
|
|
|
|
Maximum service-load moment (M - kip-ft or kN-m) |
|
|
Span length (L - ft or m) |
|
|
Moment of inertia (Ix - in^4 or mm^4) |
|
|

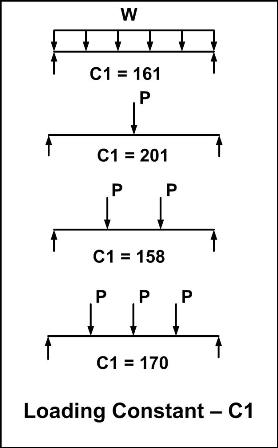

Loading constant (C1) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Output: |
|
|
Login to enable the Formulas!
|
|
|
|
|
Deflection =
|
|
|
|
|
|
|
|
|
|
|
|
|
|
